Cobalt A-2000 / 2000W FM Amplifier
The COBALT A-2000 is a fully featured 2000W / 2kW FM Amplifier that has superior audio quality and sound clarity. Ideal for many Medium power Broadcast applications where High-quality audio is needed. The COBALT A-2000 Amplifier has an industry standard 7/16 DIN output, ready to connect to your Transmission line.
What sets our Amplifiers apart are their revolutionary Dual Input design with independent input RF power metering. If you have a 1+1 system or N+1 system using Cobalt exciters (C-10, C-30, C-50 or C-100) you can eliminate the need for any external changeover rack unit, as the dual drive system will take over if there is any issue. Saves Rackspace and $$$$. The A-2000 can accept two different Input drive levels. As standard, the A-2000 is set to HIGH mode (200mW to 10W, nominal 1W) on the RF Inputs. If you require the LOW mode (2mW to 100mW, nominal 10mW), you need to specify this when ordering.

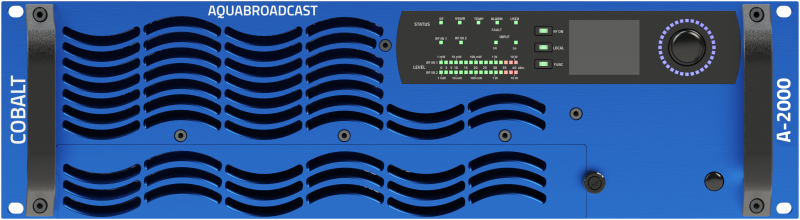

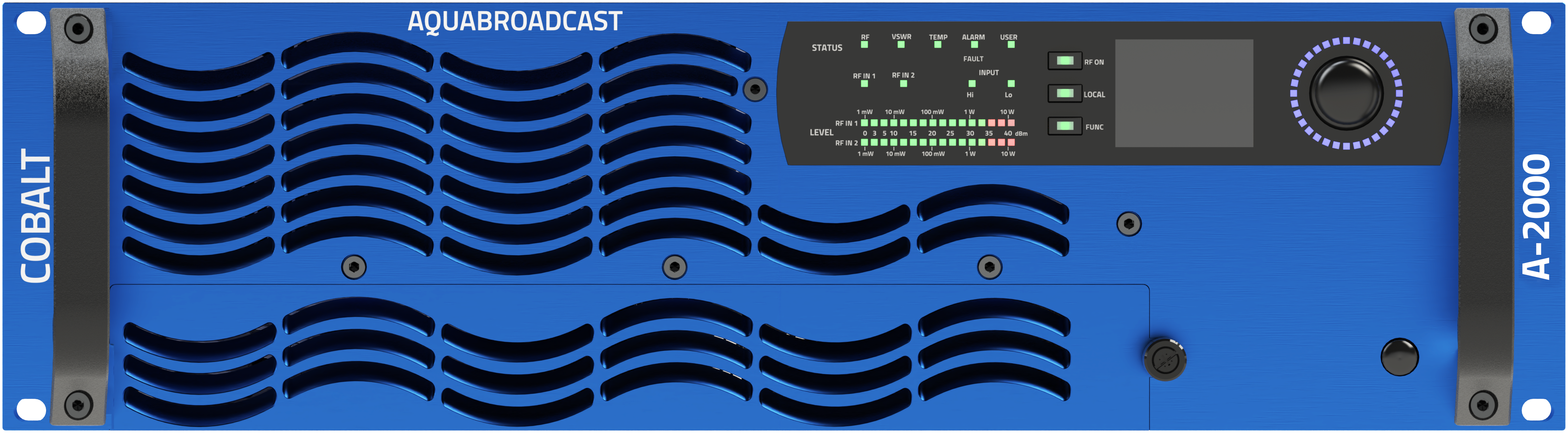

User-friendly, the modern design includes an ultra-clear RGB display that's easy to read. The intuitive joystick controls with haptic feedback and supplementary silicon buttons streamline the setup process, getting you on the air swiftly.
The COBALT A-2000 offers advanced communication and automation capabilities, featuring an intuitive web interface and remote control via Ethernet (https). This means you can make adjustments or monitor the COBALT Amplifier from anywhere. Additionally, it offers full SNMP Version 3 management, enabling you tosend emails, receive alerts, and monitor audio remotely, providing you with the assurance of full control from any location worldwide, using any device with a web browser.
Maintaining the COBALT A-2000 is cost-effective and hassle-free, thanks to easy access to all components and software-controlled variable fan speed.
It stands out with its superior AC efficiency, compact design, and reduced weight, resulting in low transportationcosts and the lowest total cost of ownership in its class.
- RF Output power2000 watts
- Dual RF Inputs
- 3U Compact Design
$ 9290 / € 8590 / £ 7290
STANDARD FEATURES
- Linux OS
- RGB Screen
- Ethernet Control with HTTPS
- SNMP v1, v2c, v3
- Advanced Automations and configurations
- Scheduler
OPTIONS
- Redundant PSU
- 48V DC Power input (power to exciter only, no RF power is available)
- Quick change Fans
- Optional Low Power Mode
GENERAL
| Output Power (W) | 2000W |
| Efficiency | Up to 78% |
| RF Output connector | 7/8 EIA, 50Ohm |
| Input Power | 110-264 VAC Single phase (for use at 110V, you must specifiy the optional 2nd PSU to be fitted) |
| or 208/400VAC Three phase 47-63Hz | |
| Temperature controlled fan | 3 |
| Dimensions WxDxH (inch) | 19 x 24 x 3RU (7”) |
| Dimensions WxDxH (cm) | 48.3 x 60 x 17.8 |
| Weight | 24kg / 53lb |
preamp
| Power Stability | ≤ ± 0.25dB |
| Asynchronous/AM noise | ≤ -60dB |
| Synchronous AM s/n ratio | ≤ -60dB |
| RF Harmonic and Spurious Suppression | Meets ETSI requirements |
| VSWR operation | Fully protected against gradual or sudden VSWR conditions. Proportional power reduction from VSWR 1.5:1 |

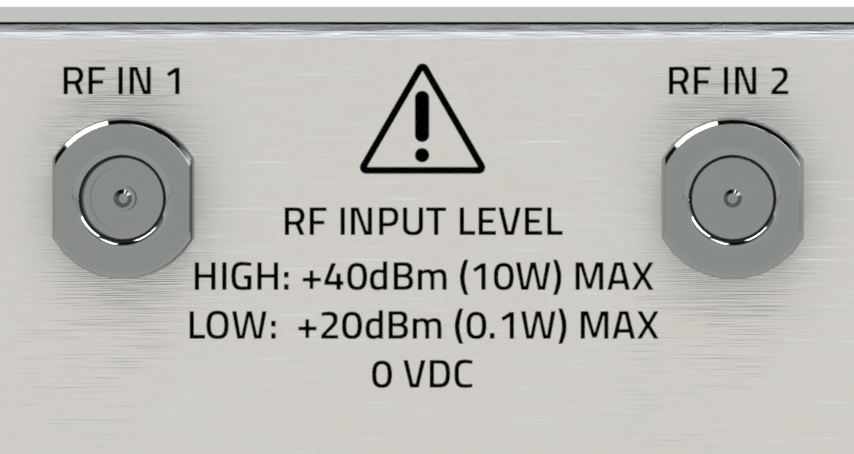

RF InPUTS
| RF1 | N Type |
| 23dBm to 40dBm, nominal 30dBm (200mW to 10W, nominal 1W) | |
| Low mode input range is 3dBm to 20dBm, nominal 10dBm (2mW to 100mW, nominal 10mW) | |
| Automatic input gain adjustment | |
| RF2 | N Type |
| 23dBm to 40dBm, nominal 30dBm (200mW to 10W, nominal 1W) | |
| Low mode input range is 3dBm to 20dBm, nominal 10dBm (2mW to 100mW, nominal 10mW) | |
| Automatic input gain adjustment | |
power supplies
| Type | Hot Swappable |
| Number of Power Supplies | 2 Standard |
ENVIRONMENTAL
| Altitude | 15,000 ft / 4,420m AMSL |
| Temperature range | 0 to +45ºC working. -10 to +50ºC storage |
| Humidity | 95% @ 35ºC, non-condensing |
